Motor Drivers-Product Selection
| Operating Voltage (Vcc) (v)
2.5-12V 2.5V-5.5V 2-7.5V 3-20V 3-27V 4.5-15V 4.5-36V 4.5-46V |
Quiescent Current Iq (Typ)
Quiescent Current Iq (Typ): <10uA <24mA 0.1uA 1uA |
Drive Current Iout
Drive Current Iout: 1.2A 1.6A 100mA 4A 5A 600mA 6A |
Operating Temperature (℃) | Package
Package: DIP-16 DIP-8 SOP-8 SOT23-6 ZIP-15 |
Alternative
116 1511 2119 2139 6208 MP6515 A4952 DRV8800 LB1947 MC34923 L298N TB62206.A3968.MTS2916.AMIS30622 TB6552 DRV8210 MP6514 BA6951 LV8417 A3918TEL4207 L TC118 |
| Product image | Model number | Operating Voltage (Vcc) (v) | Quiescent Current Iq (Typ) | Drive Current Iout | Operating Temperature (℃) | Package | Alternative |
 |
L9110S | 2.5-12V | 0.1uA | Drive Current Iout: | SOP-8 | TB6552 DRV8210 MP6514 BA6951 LV8417 A3918TEL4207 L | |
 |

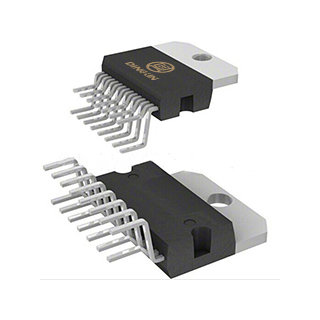

L298N | 4.5-46V | 4A | ZIP-15 | MP6515 A4952 DRV8800 LB1947 MC34923 L298N | ||
 |
L293D | 4.5-36V | <24mA | 600mA | DIP-16 | TB62206.A3968.MTS2916.AMIS30622 | |
 |
CP6208 | 4.5-15V | 0.1uA | 100mA | Package: | 6208 | |
 |
CP116 | 2-7.5V | 1.2A | SOT23-6 | 116 | ||
 |
CP118 | 2-7.5V | 1uA | 1.6A | SOP-8 | TC118 | |
 |
CP2139 | 3-27V | Quiescent Current Iq (Typ): | 6A | DIP-8 | 2139 | |
 |
CP2119 | 3-20V | 0.1uA | 5A | SOP-8 | 2119 | |
 |
CP1511 | 2.5V-5.5V | <10uA | 5A | SOP-8 | 1511 |
